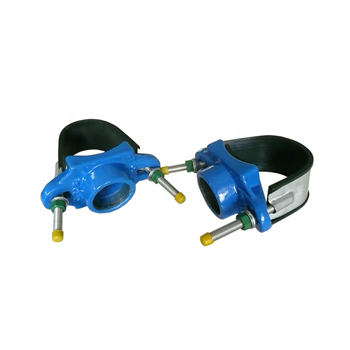

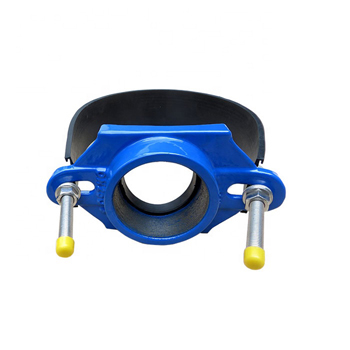

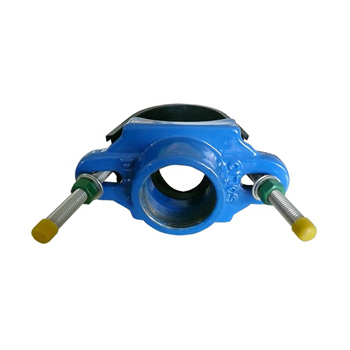

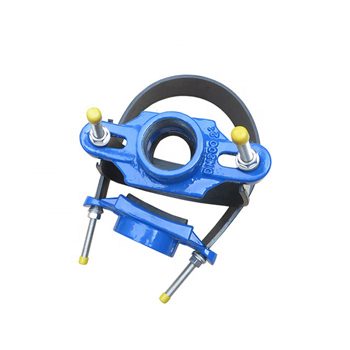

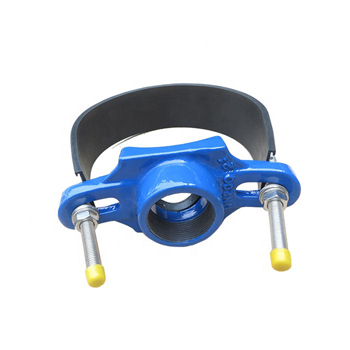

Tapping Saddle

< >

Description:

Size: DN50~DN300mm

Standard: ISO2531，EN545

Outlet: Thread(1/4″~2”)

Pressure: PN10/PN16

Body material: uctile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316

Belts: SS304

Gaskets: NBR or EPDM

Connection Pipe: PVC pipe, PE pipe, AC pipe, Steel pipe and DI pipe

Package: Wooden cases and protection layer

Application: Tapping saddle is for connecting pvc pipe.the outlet can be thread to connect with pipes,valves etc.

Size	DN40~DN800mm
Material	Ductile iron, cast iron
Standard	ISO2531, EN545, EN14525
Pressure	PN10, PN16, PN25
Body material	Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting
Gasket materials	NBR or EPDM
Bolts and Nuts	Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
Surface treatment	Epoxy Coated,Paint Coated,etc
Application	Gas, oil, water, etc
Brand Name	MIDAS
Package	Wooden cases , protection layer or as per customers' requirement.
