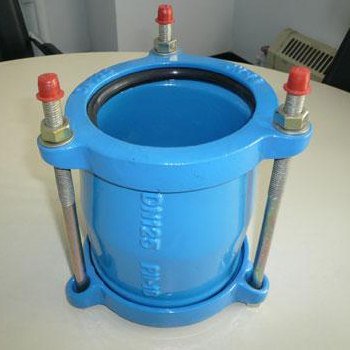

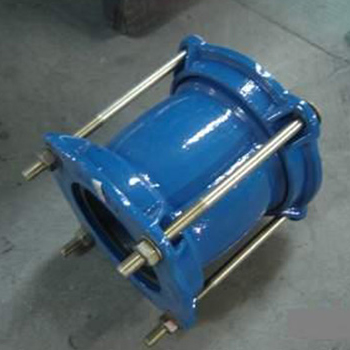

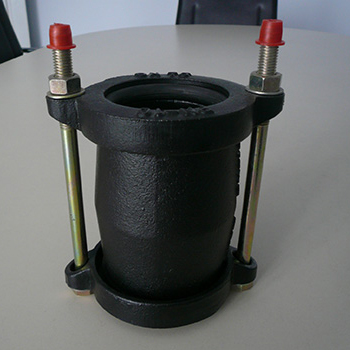

Gibault joint For PVC



  • Dismantling joint
  • Dismantling joint
  • Dismantling joint
     a. details
      1) OD30mm-OD315mm
      2) Gibault coupling for PVC pipes
      3) use:For air, water, sewer and gas pipelines
     b.Material and coating
      1) End rings-ductile iron to BS2789 grade 420/12, 500/7
      2) Sleeve-ductile iron to BS2789 grade 420/12,500/7
      3) Flange - ductile iron to BS2789 grade 420/12,500/7
      4) Coating –fusion Bonded epoxy to SABS1217, minimum thickness 250 microns, colors in RAL5005, RAL5015, RAL3009, RAL9005, RAL9011 or others
      5) Bolts-steel to BS970 grade 070M20., carbon steel Grade 8.8, SS304 or SS316 Bolts available upon requests
      6) Bolt coating- galvanized
     c. Gasket:
      Rubber seal-E.P.D.M Grade E to BS2494 1990 Type W&D
